# Shape tools

An exhaustive list of Rayon's shape drawing tool set.

All shape drawing tools can be found in the **`Shapes`** menu of the **bottom toolbar** or triggered via [**shortcuts**](https://docs.rayon.design/documentation/design/shortcuts.md).

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-90f773eb01113ea3af2ec5be59c9b9edb6c2d649%2Fshape-tools-menu.en.webp?alt=media" alt="The bottom toolbar with the Shapes menu open. Polyline, Line, Arc and Circle are pinned in the toolbar; the menu lists Polyline PL, Line L, Arc AC, Curve CV, Circle CI, Rectangle RE, Polygon PG and Guideline G with their shortcuts."><figcaption><p>Open the <strong>Shapes</strong> menu with the arrow next to the pinned shape tools.</p></figcaption></figure>

### The command options

Commands can be controlled through **modes**, **arguments** and **properties**.

#### Modes & arguments

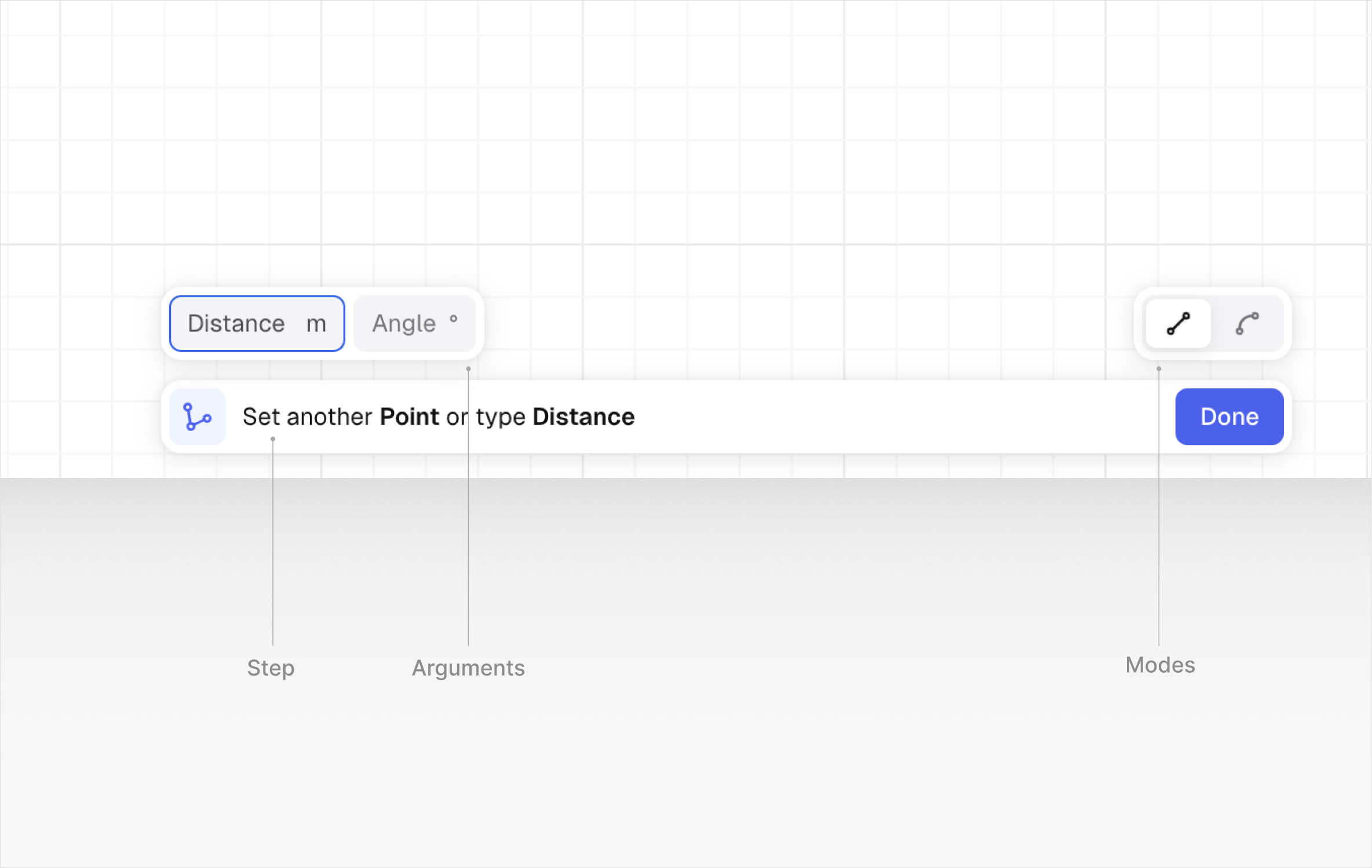

The **command modes** and **arguments** are accessible at the **top** of the **active command bar**.\
See the [complete list of commands and modes](https://docs.rayon.design/documentation/design/shortcuts.md).

Every shape tool also has a **Once/Loop** mode, toggled with **`L`**. In **Loop** mode, the tool starts again after each shape, so you can draw several shapes in a row.

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-2625e20d2405a001d1c367bf11529800bf0fee2c%2Fshape-tools-command-bar.en.webp?alt=media" alt="A polyline being drawn with live length and angle labels. The command bar shows the Distance and Angle arguments, the Line/Arc mode toggled with A, the Once/Loop mode toggled with L, the next-step instruction and the Done button."><figcaption><p>The command bar while drawing a polyline: arguments on the left, modes on the right, the next step and <strong>Done</strong> below.</p></figcaption></figure>

#### Properties

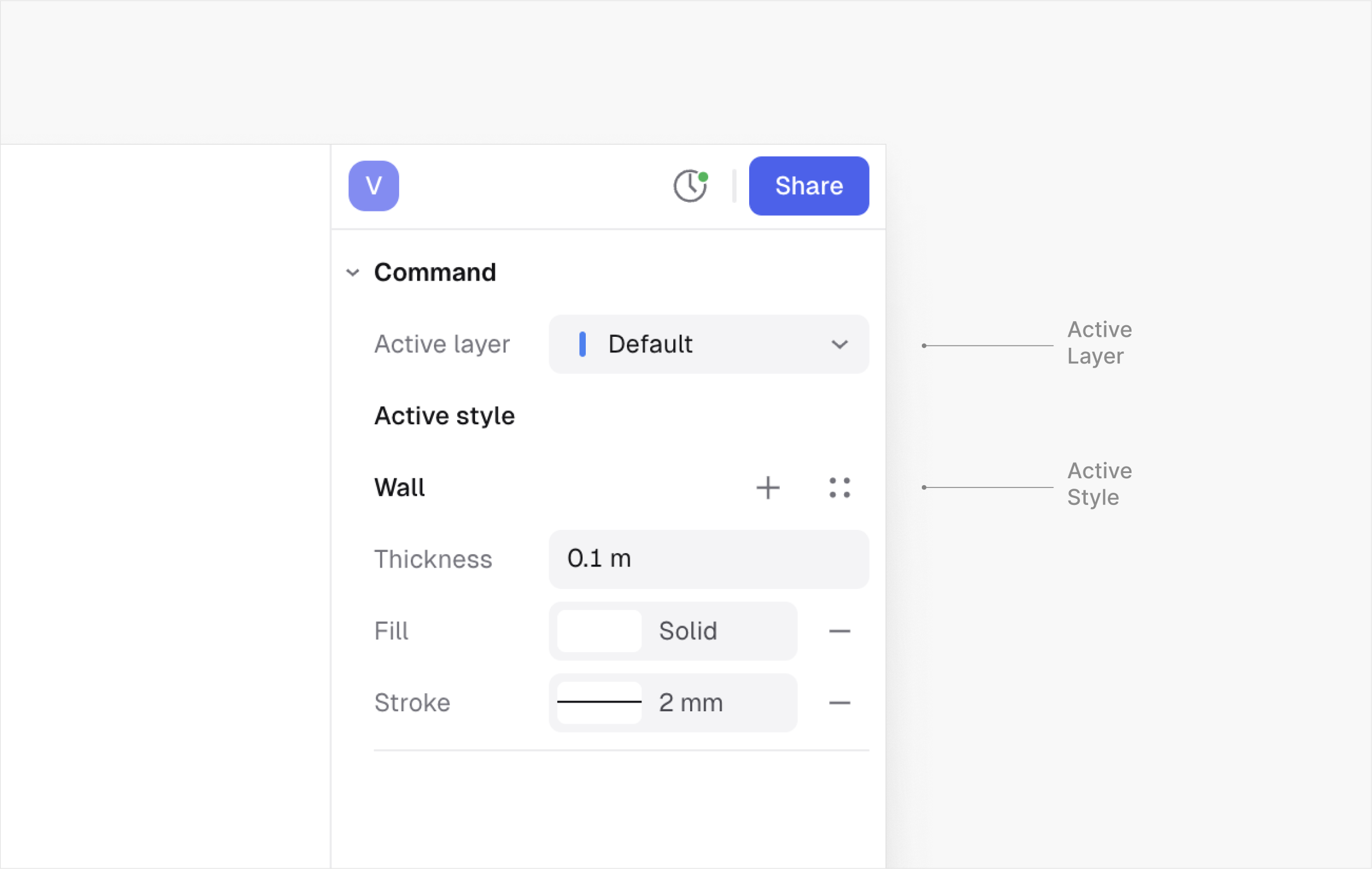

Upon **triggering a command**, some **properties** will appear in the **right panel.** These properties correspond to the **properties of the entity being drawn.**\
You will find there properties like...

* **Active layer** is the layer on which **the geometry will be drawn**.
* **Active style** is the style that is applied to **the drawn geometry** ([Learn more about styles](https://docs.rayon.design/documentation/design/styles.md)).

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2FUeN8AjHaq2kW3UzlUSEI%2FVincent-F-18.png?alt=media&#x26;token=e504e6ce-3ed1-4f49-8500-f281712e7820" alt=""><figcaption></figcaption></figure>

### **The shape tools** <a href="#h_ba5c03eeea" id="h_ba5c03eeea"></a>

#### Polyline **`PL`** <a href="#h_191a20f01c" id="h_191a20f01c"></a>

**Mode**: Line/Arc **`A`**\
**Arguments**: Distance, Angle

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-9d3a4e4eb6d3c3eb20a468eeda9e6e30bba41b54%2Fshape-tools-polyline.en.webp?alt=media" alt="A polyline with two segments placed and a third following the pointer, showing its live length and angle. The command bar shows Distance, Angle and the Line/Arc and Once/Loop modes."><figcaption><p>Click to place each point, or type a distance. Press <strong><code>A</code></strong> to switch between line and arc segments, then click <strong>Done</strong>.</p></figcaption></figure>

#### Line **`L`**

**Arguments**: Distance, Angle

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-7bb364e40de386a0d0834ffd74a94713ffba3a50%2Fshape-tools-line.en.webp?alt=media" alt="A line following the pointer from its start point, with live length and angle labels. The command bar shows the Distance and Angle arguments."><figcaption><p>Click the start point, then click the end point or type a distance and an angle.</p></figcaption></figure>

#### Arc **`AC`** <a href="#h_cde2ad71ff" id="h_cde2ad71ff"></a>

**Mode**: Radius/Angle **`A`**\
**Arguments**: Distance, Angle, Radius

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-81dbd3cdc313065354c7accd32f2ede7782c1a0d%2Fshape-tools-arc.en.webp?alt=media" alt="An arc between two placed points, bulging towards the pointer, with its radius shown live. The command bar shows the Radius argument and the Radius/Angle mode."><figcaption><p>Click the start and end points, then pick the final point or type a radius.</p></figcaption></figure>

#### Curve **`CV`** <a href="#h_1163f76286" id="h_1163f76286"></a>

**Arguments**: Distance, Angle

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-a453417c5fdcea4bf96c7f97b6b535d31ea57ac1%2Fshape-tools-curve.en.webp?alt=media" alt="A smooth curve through three placed points, extending to the pointer with live length and angle labels. The command bar shows the Distance and Angle arguments."><figcaption><p>Click to place each point of the curve, or type a distance. Click <strong>Done</strong> to finish.</p></figcaption></figure>

#### Circle **`CI`** <a href="#h_88bd98ae8c" id="h_88bd98ae8c"></a>

**Argument**: Radius

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-2d02632dea6d9c41d51fdc849cf0f0927cddb99f%2Fshape-tools-circle.en.webp?alt=media" alt="A circle drawn from its center point, its radius following the pointer and shown live. The command bar shows the Radius argument."><figcaption><p>Click the center, then pick a point or type the radius.</p></figcaption></figure>

#### Rectangle **`RE`** <a href="#h_96fce2d1c9" id="h_96fce2d1c9"></a>

**Mode**: Axis aligned/Three points **`A`**\
**Arguments**: Width, Height (Axis aligned); Distance, Angle, Height (Three points)

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-3c286bd168a2ddf1e622c5d27c941b46a93e2d0f%2Fshape-tools-rectangle.en.webp?alt=media" alt="An axis-aligned rectangle from its first corner to the pointer, with live width and height labels. The command bar shows the Width and Height arguments and the Axis aligned/Three points mode."><figcaption><p>Click a first corner, then the opposite corner, or type the width and height.</p></figcaption></figure>

#### Polygon **`PG`**

**Mode**: Circumscribed/Inscribed **`A`**\
**Arguments**: Count, Radius, Angle

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-40ca18befedc1e841c235bdbc7336961be8dcf3e%2Fshape-tools-polygon.en.webp?alt=media" alt="A five-sided polygon drawn around its center point, its radius following the pointer. The command bar shows the Count, Radius and Angle arguments and the Circumscribed/Inscribed mode."><figcaption><p>Click the center, then pick a point or type the radius and angle. Change <strong>Count</strong> to set the number of sides.</p></figcaption></figure>

#### Guideline **`G`** <a href="#h_96fce2d1c9" id="h_96fce2d1c9"></a>

**Mode**: Horizontal/Vertical/Free **`A`**\
**Argument**: Angle (Free mode)

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2Fgit-blob-5cd64dda8d7b72b7d5f9539e336d60966f728fc6%2Fshape-tools-guideline.en.webp?alt=media" alt="A horizontal guideline across the canvas, following the pointer before it is placed."><figcaption><p>Move the pointer and click to place the guideline. Press <strong><code>A</code></strong> to switch between horizontal, vertical and free.</p></figcaption></figure>

***
