June '24 Product Updates

List of improved features...

• Discover Rayon's revamped layer panel, properties panel, and command bar

• Custom units for surfaces

• Better boolean command

• Better drawing precision

• More options for 'Select Similar'

• More family blocks

For a more in-depth look at Rayon's features → check our documentation.

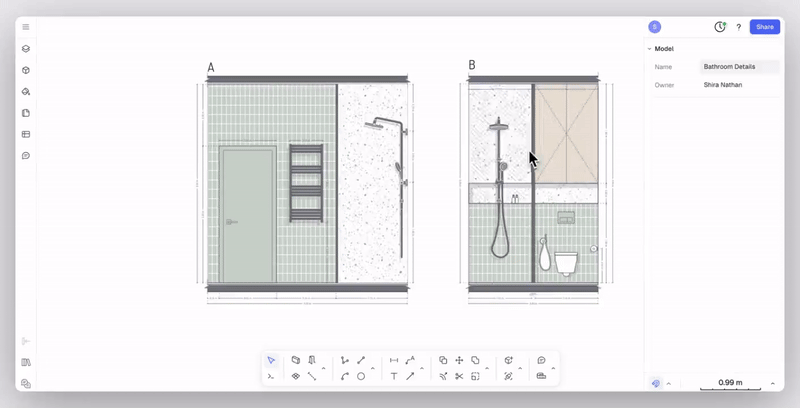

Revamped interface

Discover Rayon's revamped layer panel, properties panel, and command bar!

• The properties panel now includes quick actions, Show/hide, and lock/unlock, and more!

• The command bar is now more accessible for fast drawing and editing.

• New sleek look for the layer panel!

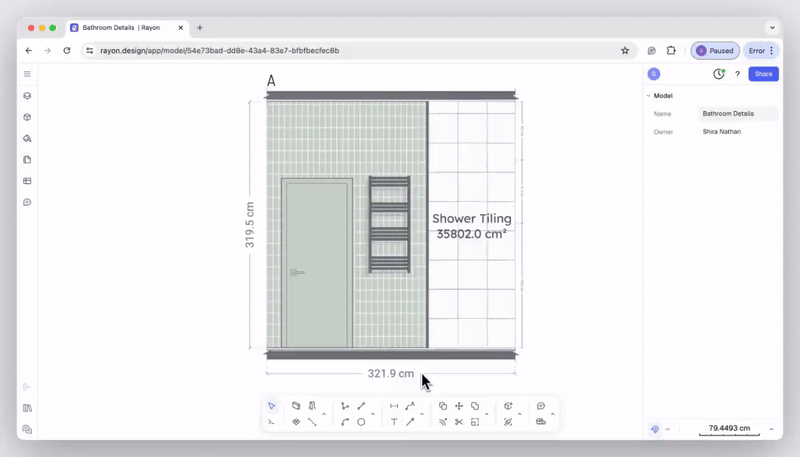

Custom units for SQM

You can now set custom SQM units that can be different from the model units. For example, you can show your dimensions as centimeters and your SQM as meters (like in the GIF above).

Better boolean command

You can now find the Boolean command in the command bar, shortcut B!

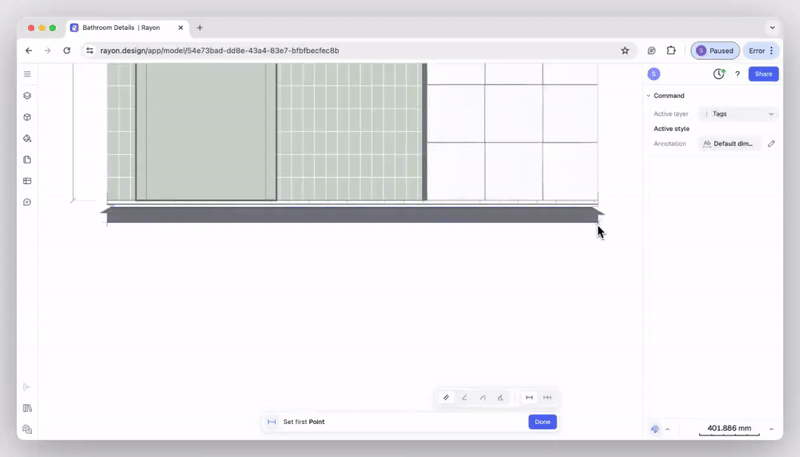

Better drawing precision

You can now draw at a precision accuracy of 0.001mm (instead of the previous 1mm).

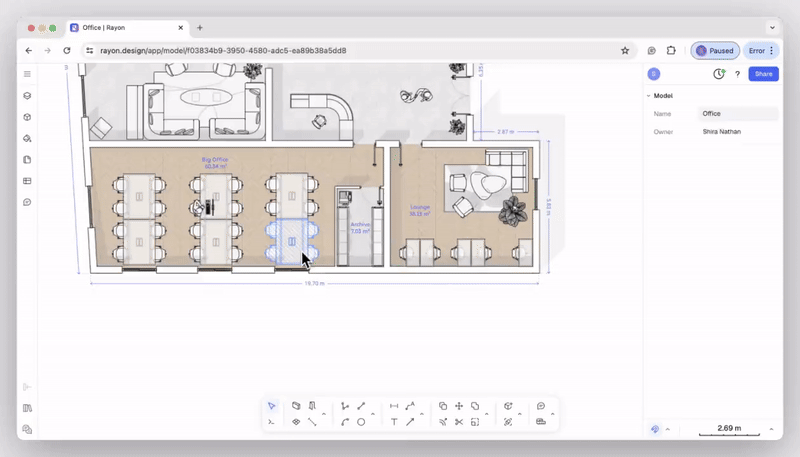

More options for 'Select Similar'

New options are introduced when you right-click and choose Select Similar . You can now select elements with the:

• Same style

• Same layer

• Same type

• Same block

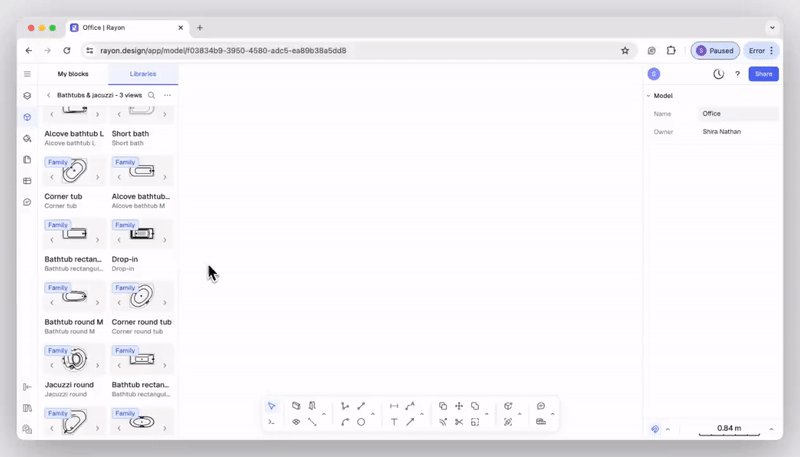

More family blocks!

As promised, we will be adding new block families to Rayon's repository each month! Including top, front, and side view drawings. During June, we have added the following: Chairs, Mattresses, Nightstands, Bedroom layouts, Coffee tables, TV & TV units, living room, Lounge layouts, Toilets, Bidets, Bathtubs & Jacuzzi, and Urinates.

Any questions?

Feel free to email us at [email protected]

For a more in-depth look at Rayon's features, check out our documentation 🔗
