# Annotations: dimensions, leaders, text

An exhaustive list of Rayon's annotation tool set.

Rayon's annotation tools can be found in the **`Annotations`** menu of the **bottom toolbar** or triggered via [**shortcuts**](https://docs.rayon.design/documentation/design/shortcuts.md).

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2FAxW2V0nuj4umYx9hQDc3%2FFrame%201788%20(4).png?alt=media&#x26;token=5f7552b6-755d-478a-8cd6-145fe476ccdb" alt=""><figcaption></figcaption></figure>

### Dimension & Leader

#### Dimension `DI` <a href="#h_4c6b37c791" id="h_4c6b37c791"></a>

**Mode**: Single/Chained **`A`**, Once/Loop **`L`**\
**Orientation**: Aligned/Horizontal/Vertical/Rotation **`O`**\
**Arguments**: Distance, Angle, Offset

* Start by **selecting** the **start point** of your dimension, then pick an end point.
* With the **Rotation** orientation, set the dimension's **rotation**.
* Then **place** the dimension by setting its **offset**.
* If in **chained mode**, keep picking points: each new point adds a dimension that continues from the previous one.

The orientation and the dimension's scale can also be set in the **`Active properties`** of the right panel while the command is running.

{% embed url="<https://player.vimeo.com/video/1027043271?autoplay=1&loop=1&muted=1&controls=0>" %}

#### **Angular dimension `AD`**

**Mode**: Angle/Arc **`A`**, Once/Loop **`L`**\
**Arguments**: Offset

When annotating **angles**...

* Start by **setting two segments to define the angle**.
* Pick a **quadrant**.
* Then set an **offset** for the dimension.

When annotating **arcs**...

* Start by **picking an arc**.
* Then set an **offset** for the dimension.

Once the dimension is placed, its **`Kind`** property (**`Small`**/**`Big`**) in the properties panel switches between the smaller and the larger angle.

{% embed url="<https://player.vimeo.com/video/1125793026?autoplay=1&loop=1&muted=1&controls=0>" %}

#### **Radius dimension `RD`**

**Arguments**: Distance, Angle

* Start by **picking an arc or circle**: click a **point on it**, or its **center**.
* Then set the **knee point**.
* Finally, set the **landing end point**. The dimension displays the radius (e.g. `R 0.45 m`).

{% embed url="<https://player.vimeo.com/video/1232998208?autoplay=1&loop=1&muted=1&controls=0>" %}

**Point on arc or center?** Both select the same arc and give the same dimension: it is attached to the arc's center, and its arrow sits on the arc in the direction of the knee. Picking the center requires **Center** snapping to be on. If the center is hard to reach or overlaps other geometry, click the arc itself.

{% hint style="warning" %}
Radius dimensions do not support **walls** yet. They work on arcs and circles only.
{% endhint %}

#### **Diameter dimension `DA`**

**Arguments**: Distance, Angle

* Start by **picking an arc or circle**: click a **point on it**, or its **center**.
* Then set the **knee point**.
* Finally, set the **landing end point**. The dimension displays the diameter (e.g. `Ø 0.90 m`).

{% embed url="<https://player.vimeo.com/video/1232999136?autoplay=1&loop=1&muted=1&controls=0>" %}

**Point on arc or center?** As with radius dimensions, both picks give the same result: the dimension is attached to the arc's center. Picking the center requires **Center** snapping to be on.

{% hint style="warning" %}
Diameter dimensions do not support **walls** yet. They work on arcs and circles only.
{% endhint %}

#### **Leader `DR`**

**Arguments**: Distance, Angle

Leaders can be used with either **text** or **blocks**. To work with a **text leader**:

* Call the **`Leader`** command, and make sure that in the annotation style, **`Head`** is set to **`Text`**.
* Start by **selecting** the **anchor point** of your leader (where the arrowhead goes), then the **knee point**, then the **landing end point**.
* As the text box opens on command completion, enter the text that your leader should display.

{% embed url="<https://player.vimeo.com/video/1027039367?autoplay=1&loop=1&muted=1&controls=0>" %}

To use a **block leader**, repeat the same steps, but set the annotation style's **`Head`** to **`Block`**. Here are the steps:

* Call the **`Leader`** command.
* Set the annotation style's **`Head`** to **`Block`**.
* In the modal that opens, either pick one of the suggested head blocks, or browse to your preferred library. Validate to close the modal.
* Start by **selecting** the **anchor point** of your leader, then the **knee point**, then the **landing end point**.

{% embed url="<https://player.vimeo.com/video/1027043214?autoplay=1&loop=1&muted=1&controls=0>" %}

At any point, the text inside **the leader's block head can be edited** by simply double-clicking on the text itself.

{% embed url="<https://player.vimeo.com/video/1027043030?autoplay=1&loop=1&muted=1&controls=0>" %}

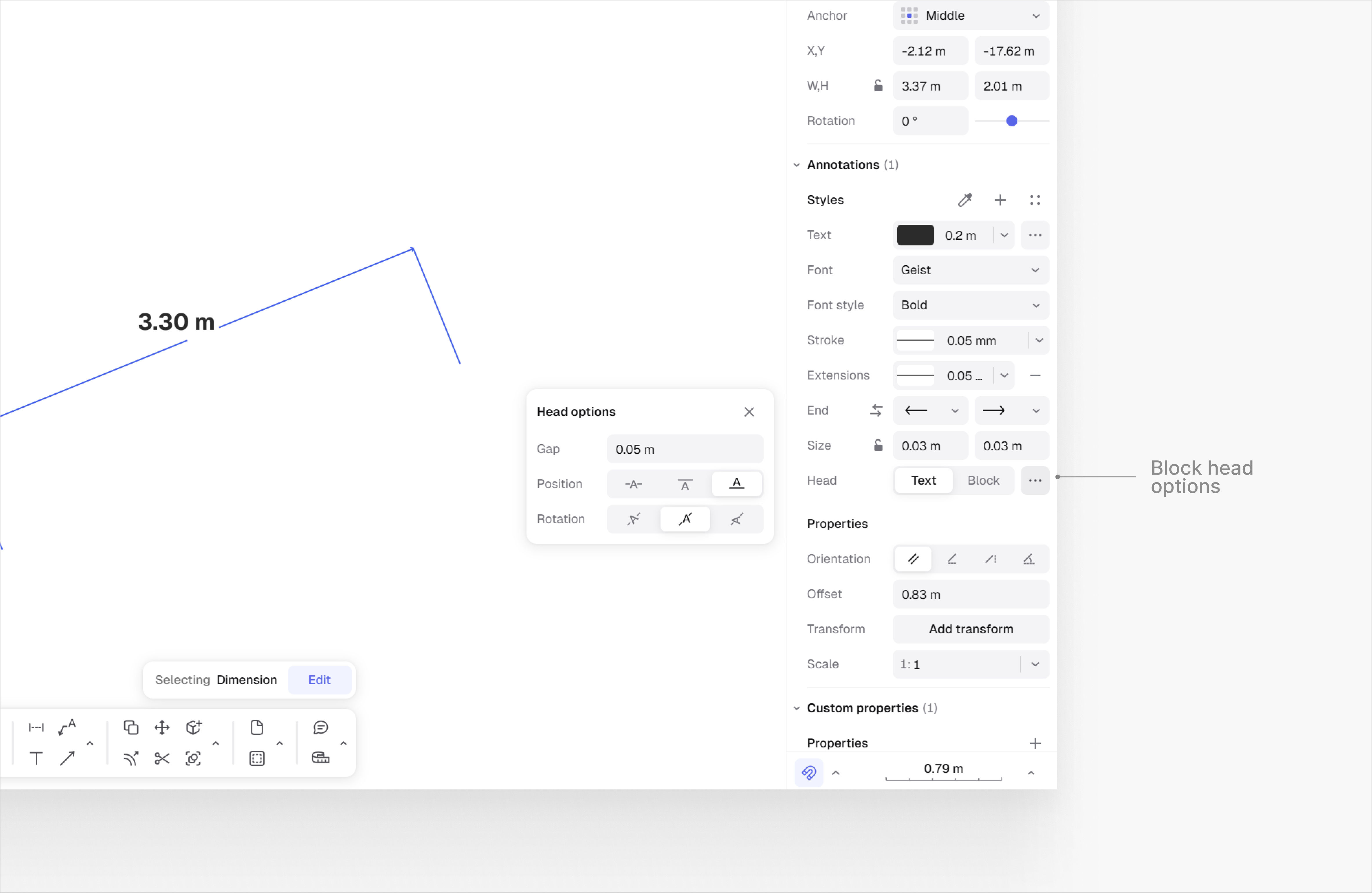

### **Annotation head options and transform**

The head of a dimension or a leader can be either a **text** or a **block** (the annotation style's **`Head`** setting). Either way, the annotation style's **`Head options`** allow you to choose the head...

* **`Gap`**: a gap surrounding the annotation text
* **`Position`**: Centred, Inside, Outside
* **`Rotation`**: Aligned, Horizontal, Vertical
* **`Always up`**: keeps the head upright (available with the Aligned rotation)

... as a way to format the annotation.

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2F2I37Jf80PJpmND4MZMPc%2FFrame%201816.png?alt=media&#x26;token=cb667bdd-04d5-4c1f-9bc4-c802128f8087" alt=""><figcaption></figcaption></figure>

Additionally, the **head transform** allows you to manually move the head inside the annotation. Any manual edit is saved inside the annotation's **`Transform`** property (**`Scale`**, **`Shear`**, **`Rotation`**, **`Offset X,Y`**), which can be reset at any point with the **Reset head transform** button.

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2FXxf6XWOTdJ2ocMeGM1E4%2FFrame%201817.png?alt=media&#x26;token=fe1fc88d-0426-4123-8e49-b7965f6ad8a2" alt=""><figcaption></figcaption></figure>

### **Dimension scale**

Note that dimensions can **be set to a specific scale**.\
This is especially useful when adding dimensions in the paper canvas. This way, if a view has a 1:20 scale, then dimensions overlaid on top of it can be tuned to match the view scale. The **`Scale`** setting is in the dimension's properties, and in the **`Active properties`** while the **`Dimension`** command is running.

<figure><img src="https://2112124689-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FngVHKyaUSSJPTFck3wkz%2Fuploads%2FGqFaMLTyVSvyCNYoElPH%2FFrame%201831.png?alt=media&#x26;token=4e0f77b4-283e-48aa-b81e-ebaeca71d7c0" alt=""><figcaption></figcaption></figure>

### **Arrow `AW`**

**Mode**: Line/Arc **`A`**, Once/Loop **`L`**\
**Arguments**: Distance, Angle

* Start by selecting the **start point** of your arrow.
* Then pick the **arrowhead point.**

{% embed url="<https://player.vimeo.com/video/1027043922?autoplay=1&loop=1&muted=1&controls=0>" %}

### **Revision cloud `RC`**

**Mode**: Rectangle/Polygon **`A`**, Once/Loop **`L`**\
**Arguments**: Width, Height (Rectangle); Distance, Angle (Polygon)

Simply draw your revision cloud. In **Rectangle** mode, set two opposite corners. In **Polygon** mode, close the shape on its first point, or press **Space** (or **Enter**) when your shape is complete.

{% embed url="<https://player.vimeo.com/video/1135860718?autoplay=1&loop=1&muted=1&controls=0>" %}

### Text & tag <a href="#h_0dec56c1a9" id="h_0dec56c1a9"></a>

#### **Text `TT`**

* Start by **selecting** the **insertion point of your text box.**
* As the text box opens on command completion, **enter the text that your text box should display.**

{% embed url="<https://player.vimeo.com/video/1027042900?autoplay=1&loop=1&muted=1&controls=0>" %}

#### **Tag `TG`**

* Start by **selecting** **an entity your tag should be tied to.**
* As the text box opens on command completion, either:
  * **Enter the text that your tag should display.**
  * Type **`/`** in the text to search for a property, then press **Enter** to **insert a property of the tag's parent entity**.

{% embed url="<https://player.vimeo.com/video/1027042649?autoplay=1&loop=1&muted=1&controls=0>" %}

#### **Page number `PN`**

* Start by **selecting** **a page to number**. Rayon adds a live page number at its bottom-right corner, using the active text style.
* To number several pages at once, select them before calling the command.

See [Pages](https://docs.rayon.design/documentation/layout-and-present/pages.md) for how pages are ordered and numbered.

***
